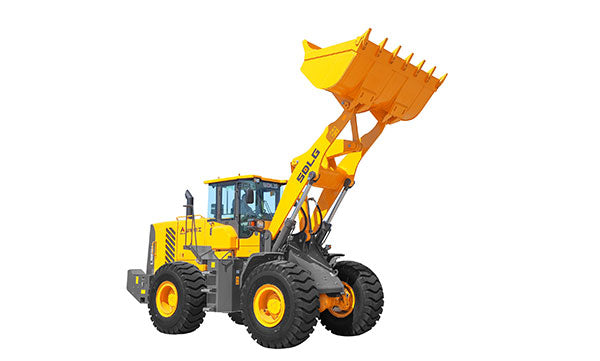

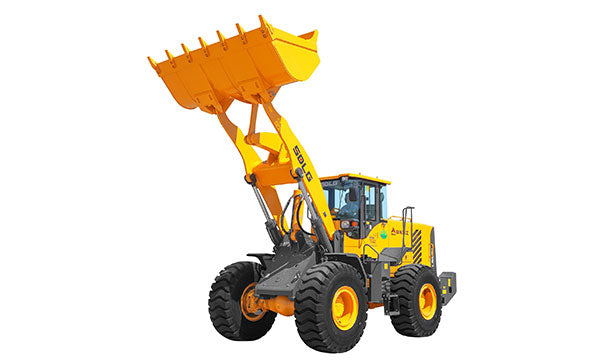

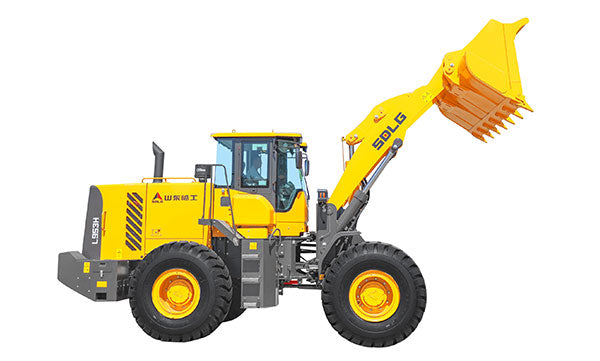

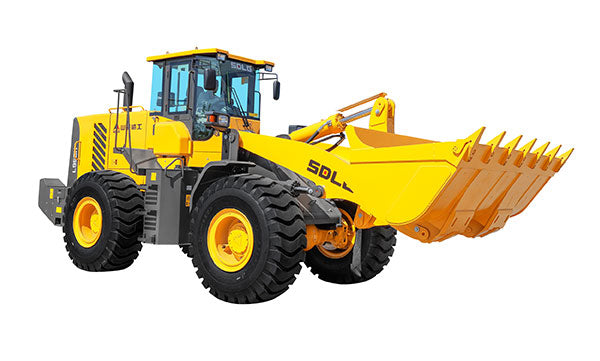

L953H WHEEL LOADER Main Parameter ( Standard Equipment )

Overall parameter

• Operating weight (kg): 16900
• Rated load (kg): 5000
• L×W×H (mm): 8000×3024×3423
• Bucket capacity (m³): 2.8
• Max. tractive force (kN): 152
• Max. breakout force (kN): ≥175
• Tipping load (kN): ≥110

Engine

• Rated power@speed (kW@r/min): 162@2200
• Maximum torque@speed (kN@r/min): 860@(1400‑1600)
• Emission standard: GB 20891‑2007

Transmission system

• Transmission type: Planetary power shift
• Gears: F2 & R1
• Speed at FI (km/h): 0 ~ 13
• Speed at FII (km/h): 0 ~ 38
• Speed at RI (km/h): 0 ~ 17

Hydraulic system of working device

• System pressure (Mpa): 18.5
• Total cycle time(bucket lift &dump&fall) (s): ≤9.3

Steering system

• System pressure (Mpa): 16

Fill capacity

• Fuel (L): 260
• Hydraulic oil (L): 230
• Engine (L): 22
• Transmission (L): 44
• Drive axle (L): 26+26
• Braking system (L): 4
